Project Description

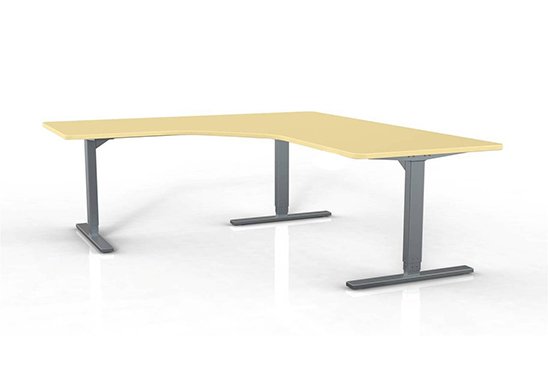

MountinGear L-shape standing desk
Our L-shape workstation is designed based on our 2 legs desk series, therefore, both 3 leg, 2 stages and 3 stages are available, the model contains the similar features as the 2 legs desk. Below are some product features:
- Strong package protection, keep parts safe even after long-time traveling;
- Easy to assemble with tools included;
- High quality and solid steel used, providing stable and long lasting use;
- Stainless material screws, very easy to use ;
- Soft Start / Stop Technology , no jerking and no jolting;
- Latest lifting system used, easy to operate, smooth to lift;
- Delicate powder coating finishing, endures more than 50,000 times lifting;
- Functional Led Display hand set, 4 memory sets;
Technical Data of 3 legs 3 stages model (Please refer to 2 motors 2 stages technical date for model 3 legs 2 stages) :
| Color | white/grey/black |
| Column Segments | 3 Column segments |
| Material | solid steel tube |
| Steel thickness | 1.8 mm |
| Max. Load on frame | 120 kg |
| Speed up to (mm/s) | 33-38 mm/s |
| Input (VAC) | 110V-240V |
| Noise Control | <50 dba |
| Lowest postion (mm) | 600mm(with desktop) |
| Hightest postion (mm) | 1250mm(with desktop) |
| Telescopic beam range | 1200 to 1800 mm |
| Table top range | (1200 to 1800) x (700 to 850) mm |
| Operating temperature | 0℃ – 40℃ |
| Dutycycle | 10%, max 2 min continuous use |
| Certificates | TUV |
| MOTOR warranty | 2 years |
