Project Description

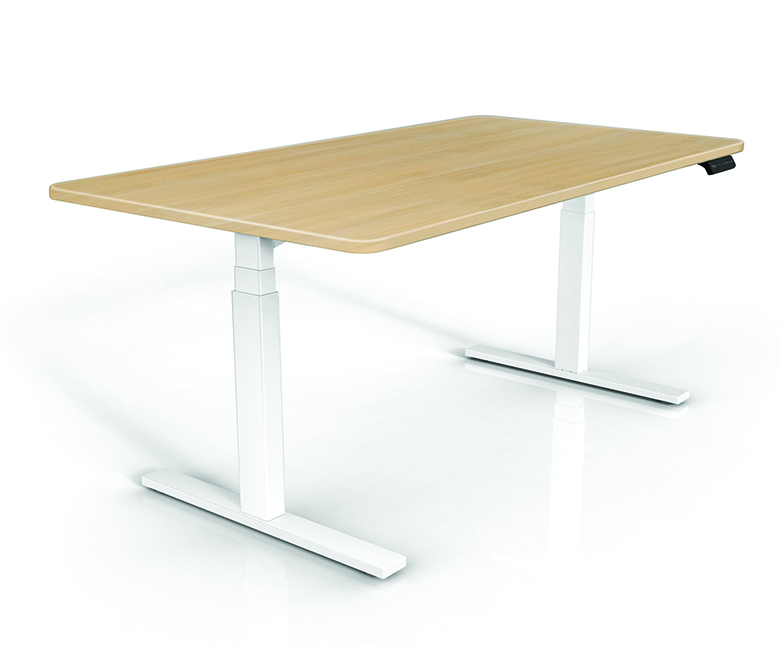

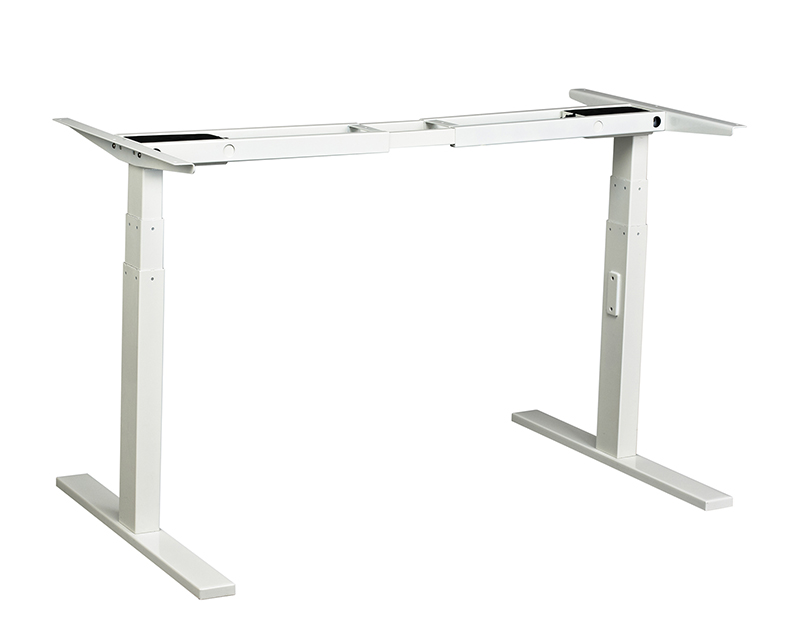

Model 300–MountinGear 2 motors 3 stages standing desk
Our 2 motors 3 stages standing desk frame is one of our best sellers. The biggest difference between 2 stages model and 3 stages model is that 3 stages model has 3 pipes in lifting leg, while 2 stages model has only 2 pipes. The lifting speed of 3 stages model (38mm/s) is faster than 2 stages model (24mm/s).

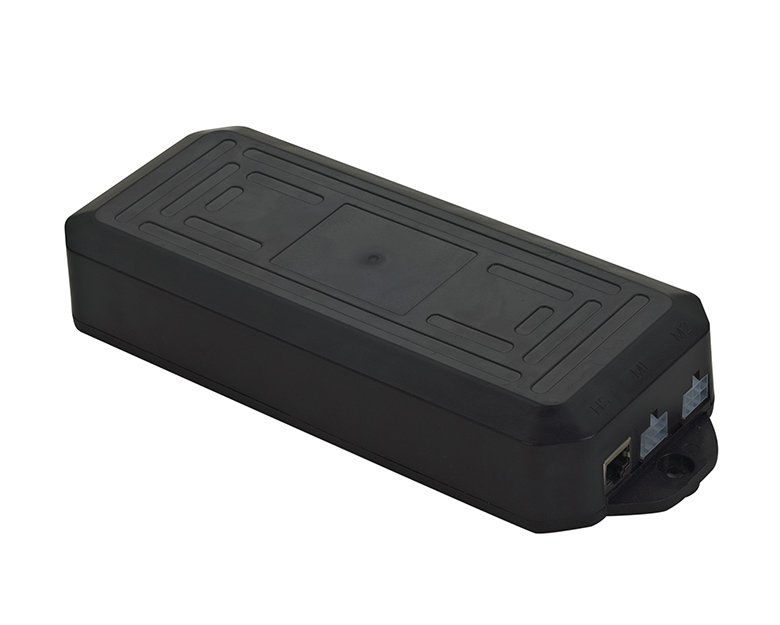

This model contains all our latest functions in the control box, making the desk easy to operate. Below are some product features:
- Strong package protection, keep parts safe even after long-time traveling;
- Easy to assemble with tools included;
- High quality and solid steel used, providing stable and long lasting use;
- Stainless material screws, very easy to use ;
- Soft Start / Stop Technology , no jerking and no jolting;
- Latest lifting system used, easy to operate, smooth to lift;
- Delicate powder coating finishing, endures more than 50,000 times lifting;

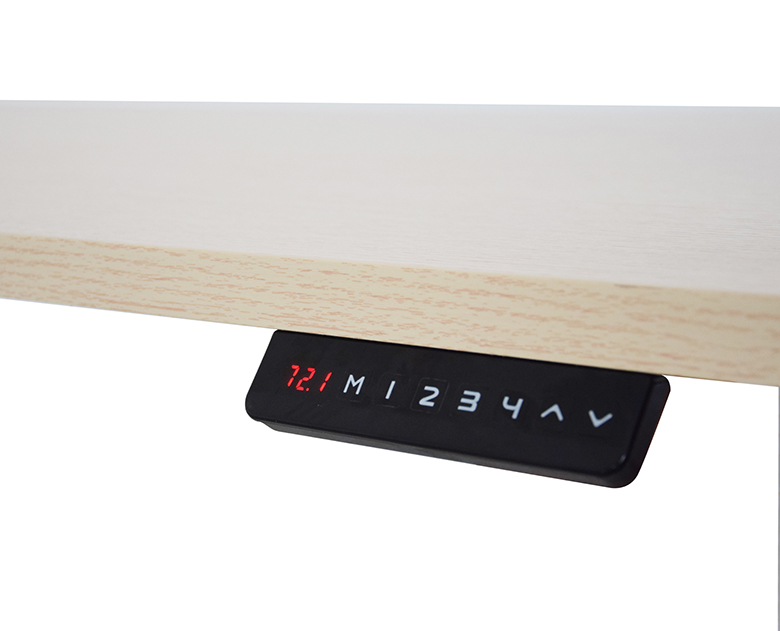

- Functional Led Display hand set, 4 memory sets;
Technical Data:
Color | white/grey/black |
Column Segments | 3 Column segments |
Material | solid steel tube |
Steel thickness | 1.8 mm |
Max. Load on frame | 120 kg |
Speed up to (mm/s) | 33-38 mm/s |
Input (VAC) | 110V-240V |
Noise Control | <50 dba |
Lowest postion (mm) | 600mm(with desktop) |
Hightest postion (mm) | 1250mm(with desktop) |
Telescopic beam range | 1200 to 1800 mm |
Table top range | (1200 to 1800) x (700 to 850) mm |
Operating temperature | 0℃ – 40℃ |
Dutycycle | 10%, max 2 min continuous use |
Certificates | TUV |
MOTOR warranty | 2 years |
